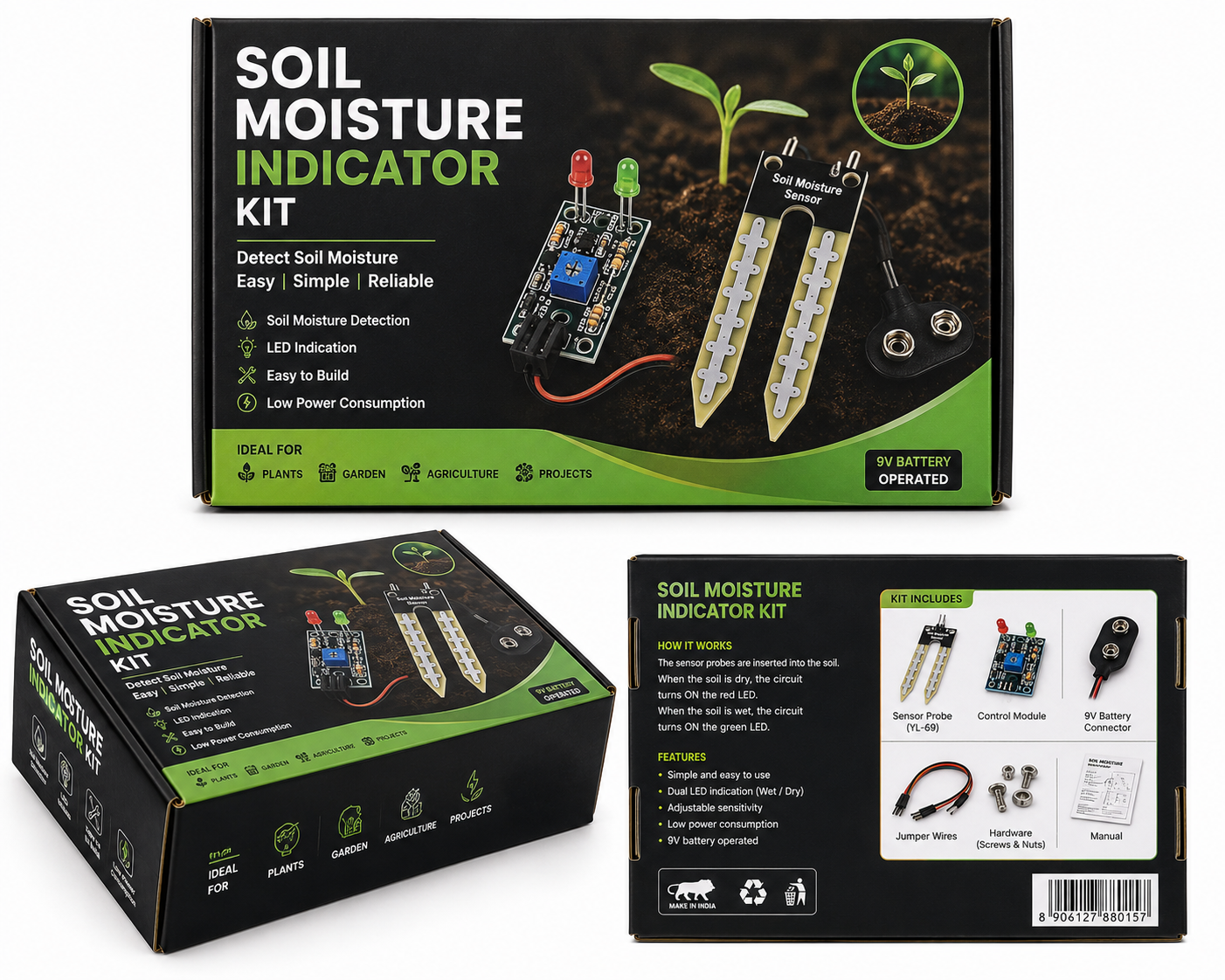

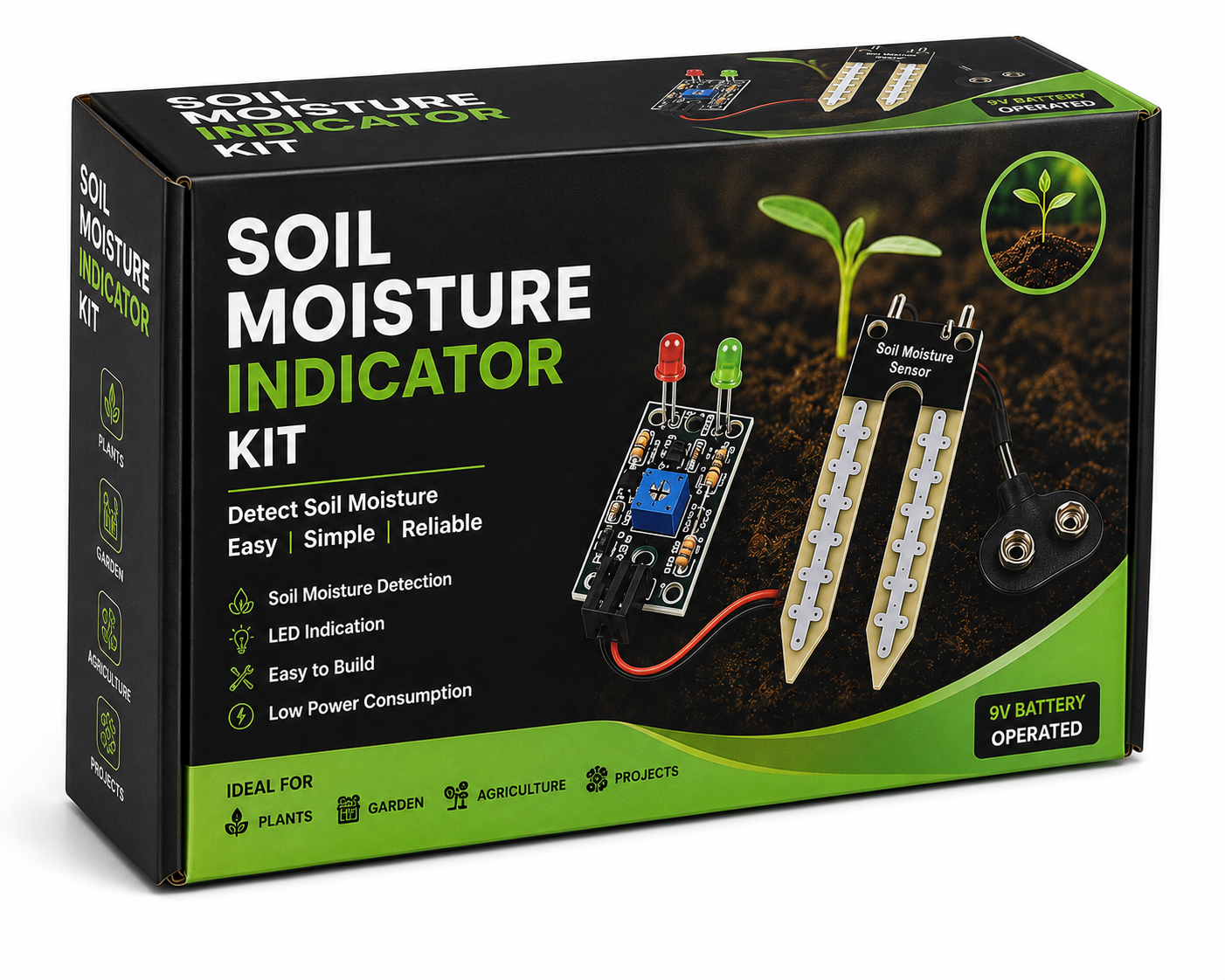

Soil Moisture Indicator Kit

The Soil Moisture Indicator Kit is a simple DIY electronics project that detects the moisture level in soil and indicates whether the soil is dry or wet using LED indicators. It is an ideal educational kit for students, hobbyists, and beginners to learn about soil moisture sensing, electronic circuits, and automatic irrigation concepts. Suitable for science exhibitions, STEM learning, and basic electronics projects.

Components

• Soil Moisture Sensor Module

• LED Indicators (Red & Green)

• Resistors


• 9V Battery with Battery Connector

• Transistor BC547

Working Principle

The soil moisture sensor measures the moisture content in the soil by detecting its electrical conductivity. When the soil is dry, the sensor output activates the Red LED, indicating low moisture. When the soil is wet, the sensor detects higher conductivity and activates the Green LED, indicating sufficient moisture. The circuit operates using a 9V battery and provides a simple visual indication of soil conditions.

Advantages

• Easy to build and operate

• Helps monitor soil moisture levels

• Prevents overwatering and underwatering

• Low power consumption

• Ideal for educational and DIY projects

• Suitable for beginners in electronics

• Can be expanded for automatic irrigation systems

Applications

• Home gardens

• Potted plants

• Agricultural fields

• Greenhouses

• Plant nurseries

• Science exhibition projects

• STEM and electronics learning

• Automatic irrigation system development
