Leonardo R3 Board Micro-USB compatible with Arduino
Rs. 459.00
Sale price
Rs. 459.00
Regular price

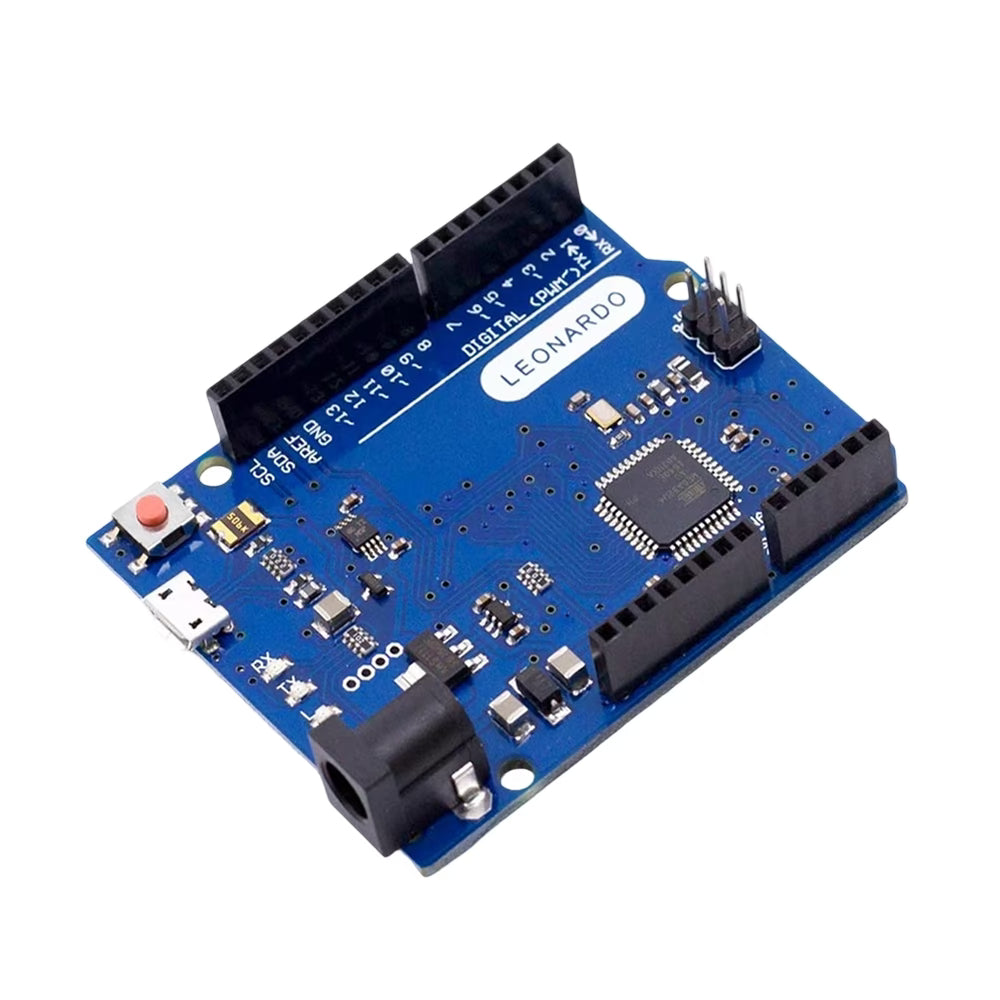

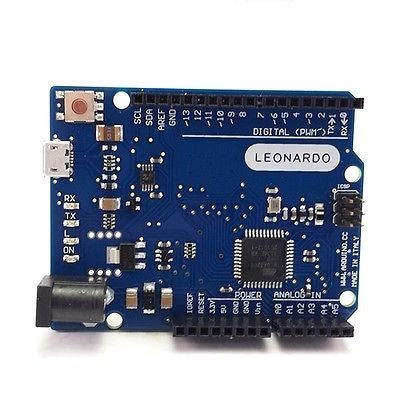

The Leonardo R3 Board is a highly capable, micro-USB compatible microcontroller based on the ATmega32u4 chip. Designed natively to communicate with your PC, it can emulate standard HID devices like keyboards and mice without the need for secondary processor chips.
Core Specifications
-
Microcontroller: ATmega32u4
-
Operating Voltage: 5V
-
Digital I/O Pins: 20 (with 7 PWM outputs)
-
Analog Input Channels: 12
-
Flash Memory: 32 KB (4 KB used by bootloader)
-
Clock Speed: 16 MHz
Key Advantages
-
Native USB: Unlike the older Uno R3, the Leonardo uses a single microcontroller for USB communication. This allows it to act as a virtual serial port, mouse, or keyboard.
-
Programming: Programmed easily through standard Arduino IDE by selecting "Arduino Leonardo" in the Boards Manager.
-
Versatile Power: Can be powered via the Micro-USB port or an external 7–12V DC power jack.
