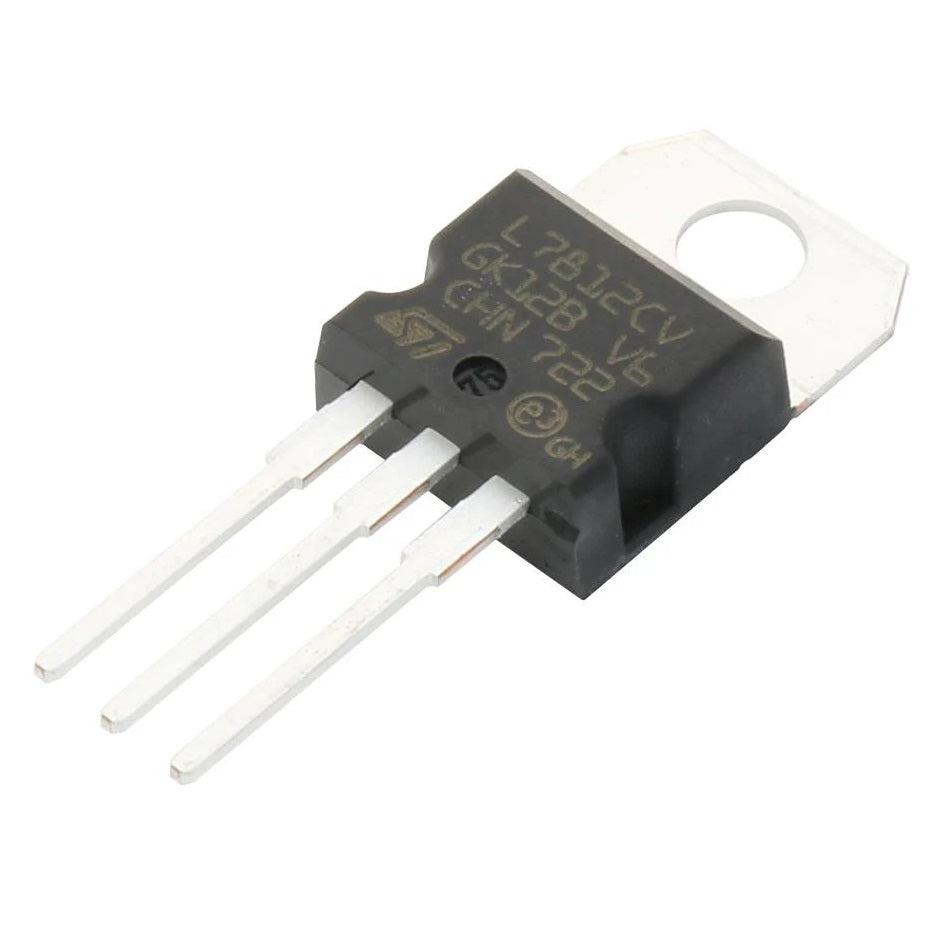

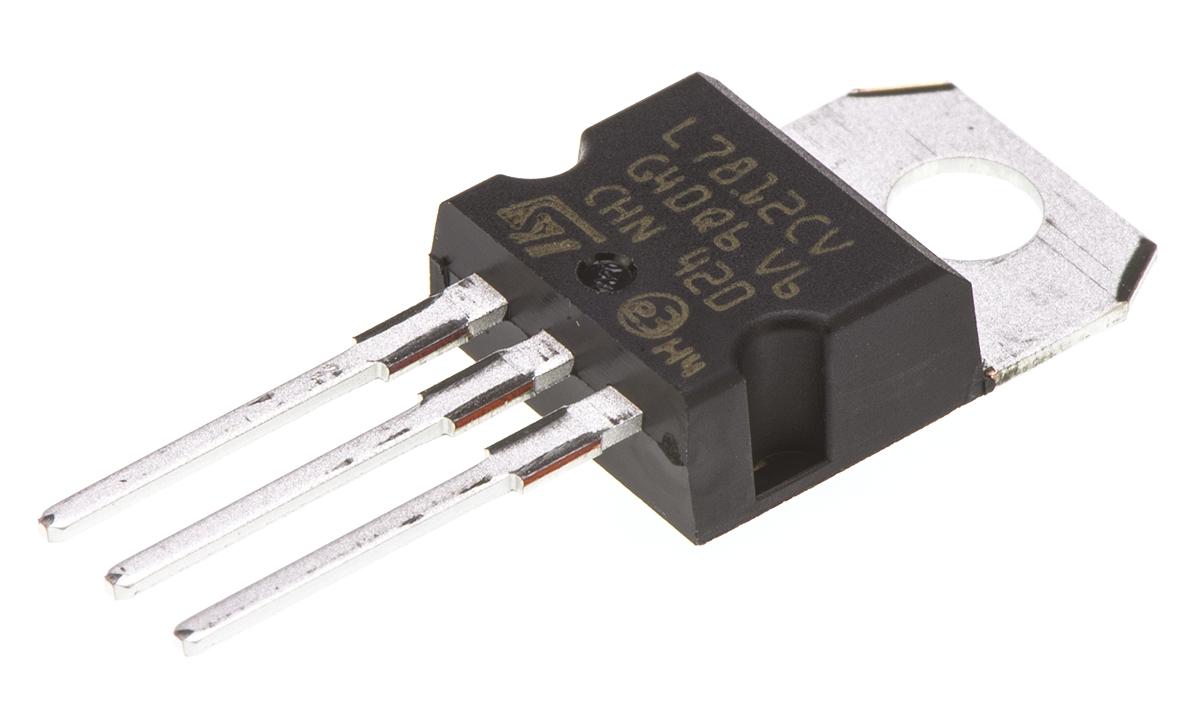

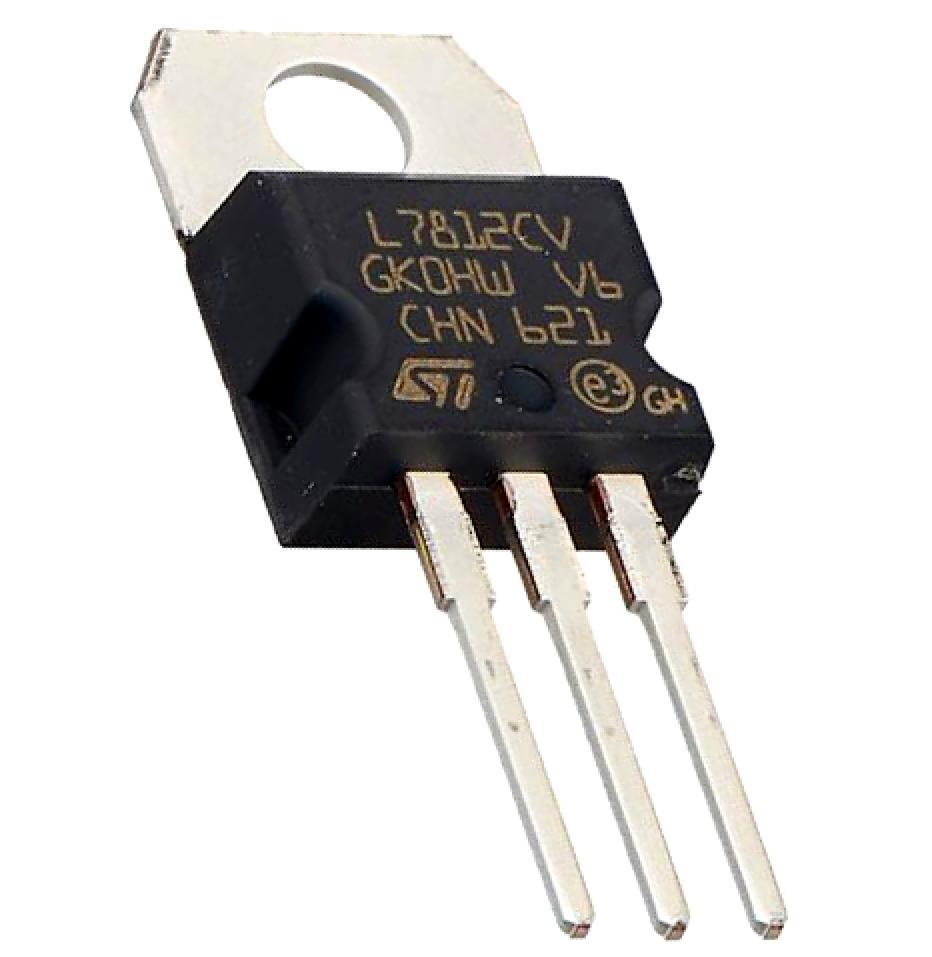

L7812CV-DG ST 12V 1.5A TO-220 VOLTAGE REGULATOR 7812

The L7812CV-DG from STMicroelectronics is a fixed 12V positive linear voltage regulator capable of delivering up to 1.5A output current. Housed in a TO-220 package, it provides a stable 12V output and includes built-in thermal overload, short-circuit, and safe operating area protection, making it ideal for power supplies, industrial equipment, automotive electronics, and DIY projects

Features

• Fixed 12V output voltage
• Output current up to 1.5A
• Input voltage up to 35V DC
• Built-in thermal overload protection
• Short-circuit protection

Pin Configuration

Front View (text facing you, pins downward):

1. Input (VIN)
2. Ground (GND)
3. Output (VOUT – 12V)

Package Includes

• 1 × L7812CV-DG ST TO-220 12V 1.5A Voltage Regulator (7812)
