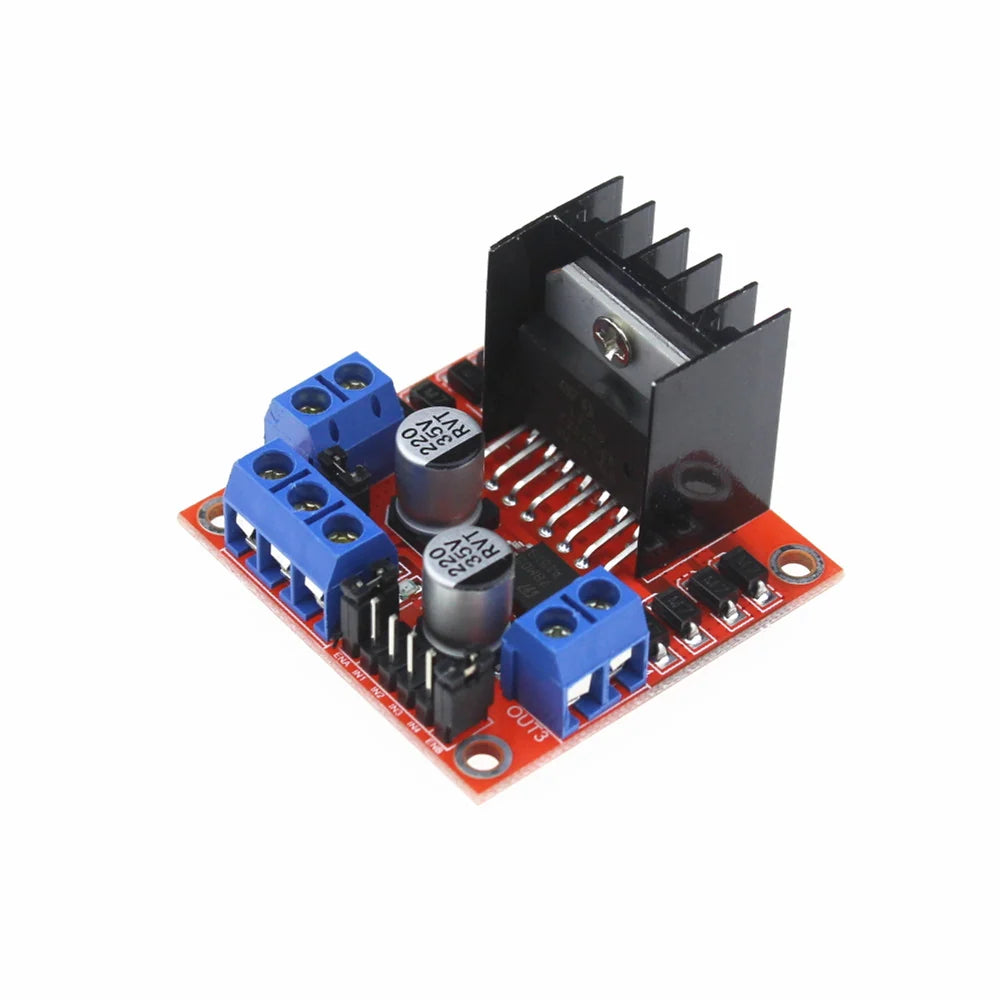

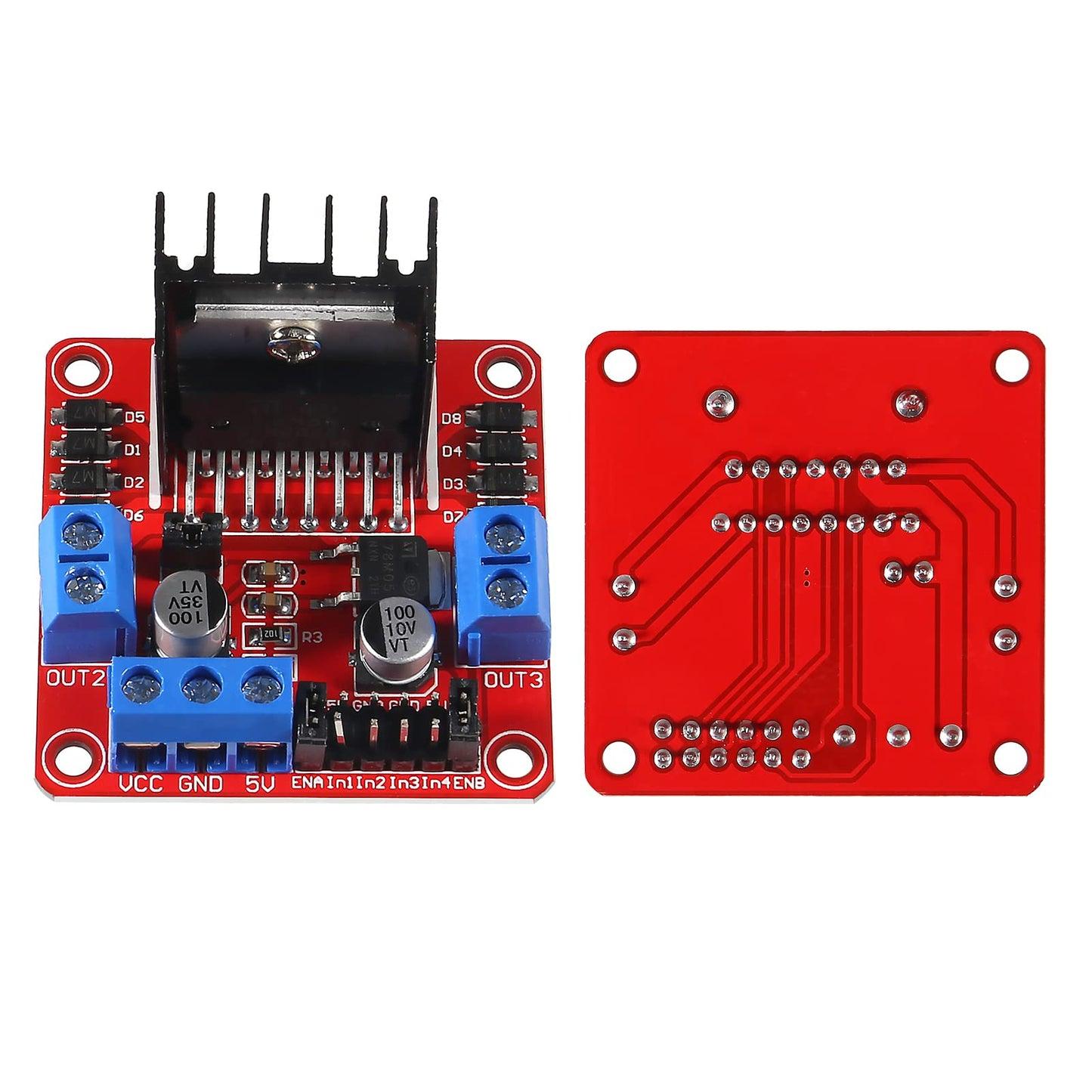

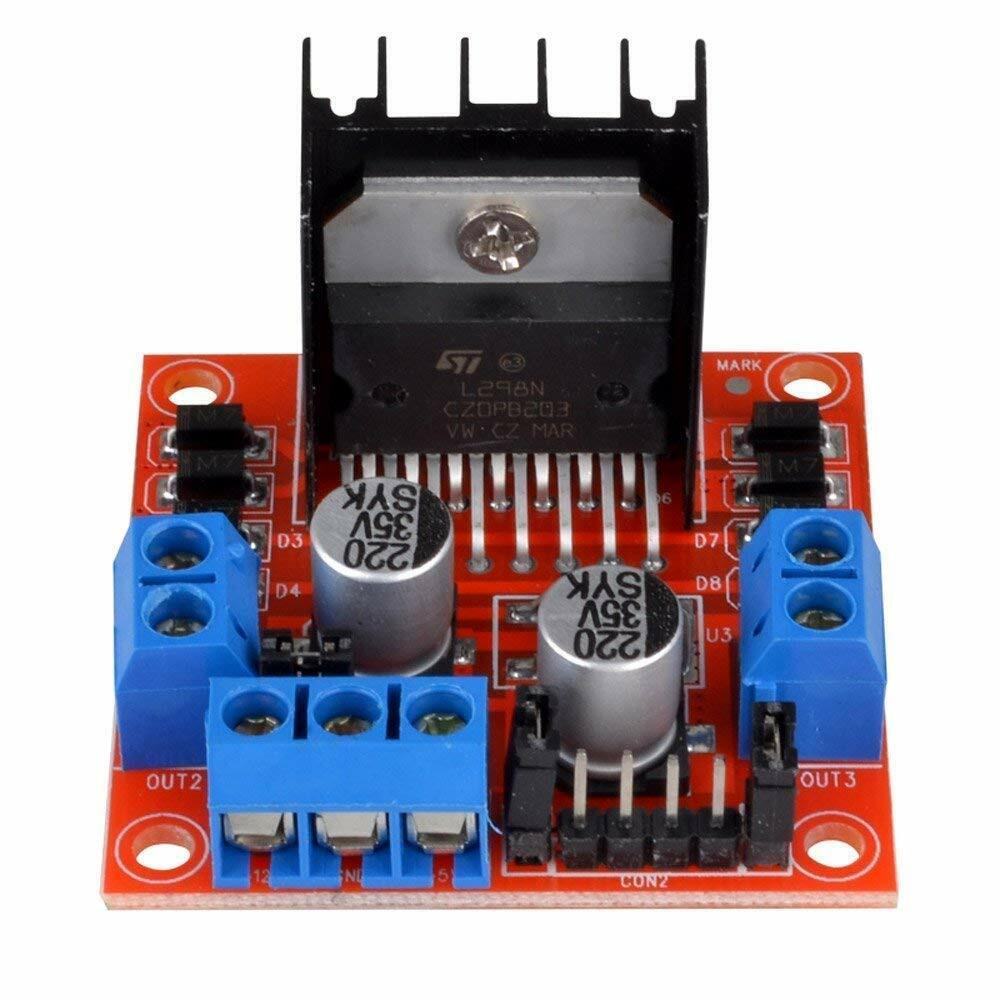

L298N 2A Motor Driver Module

The L298N 2A Motor Driver Module is a dual H-Bridge motor driver designed to control the speed and direction of two DC motors or one bipolar stepper motor. It operates from 5V to 35V DC and is compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms, making it ideal for robotics, automation, and DIY electronics projects.

Features

• Dual H-Bridge motor driver
• Controls 2 DC motors or 1 stepper motor
• Motor supply voltage: 5V–35V DC
• Maximum motor current: 2A per channel (peak)
• PWM speed control
• Forward and reverse motor control

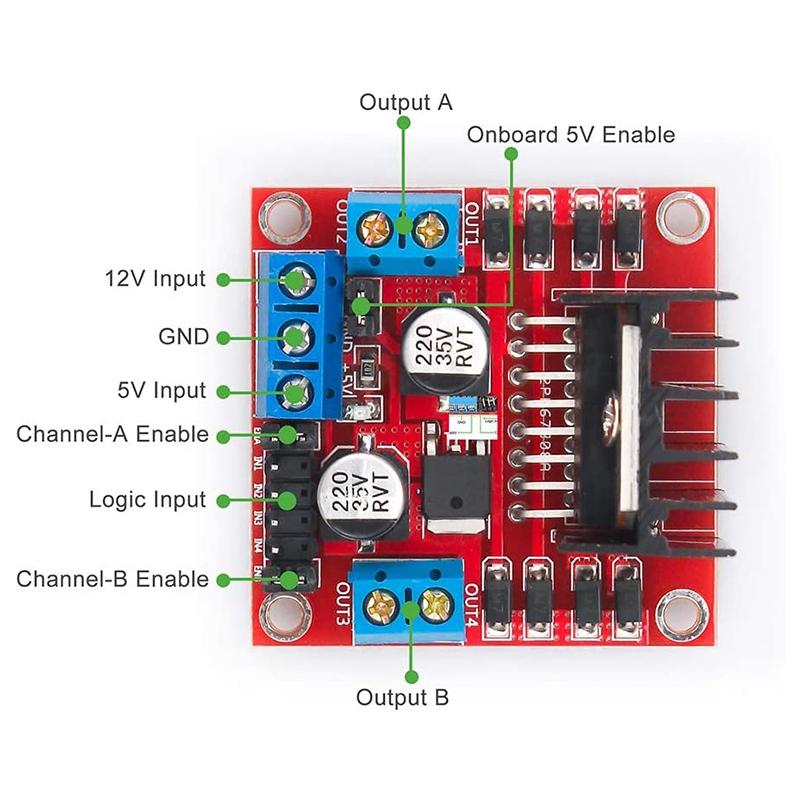

Pin Configuration

Power Connections

• +12V (Vs): Motor Power Input (5V–35V)
• GND: Ground
• 5V: Logic Power / 5V Output (depending on regulator jumper)
