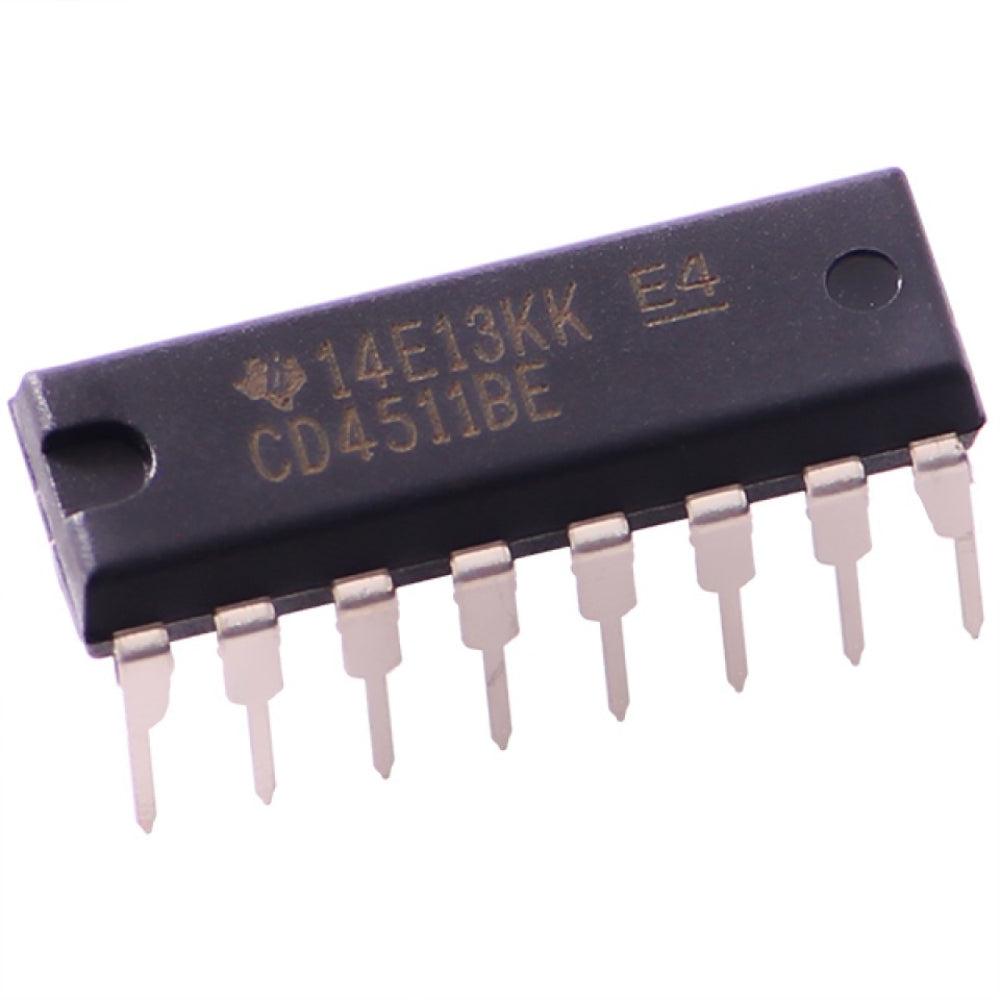

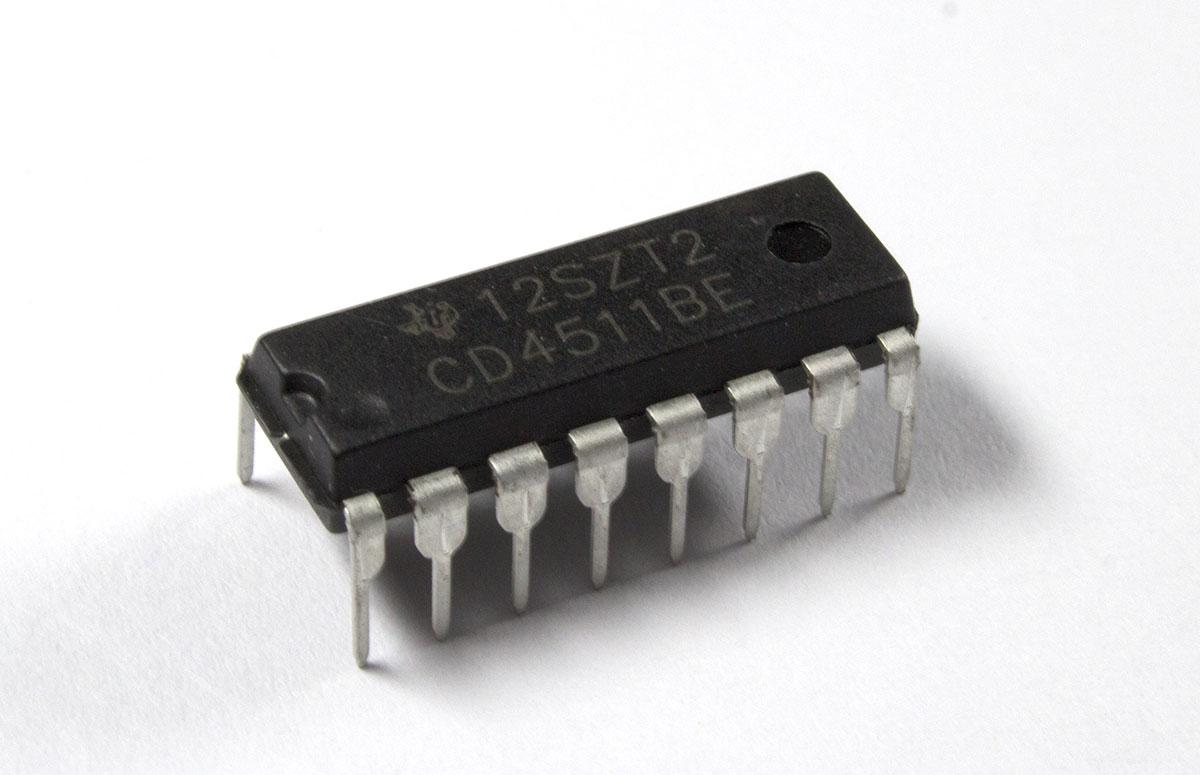

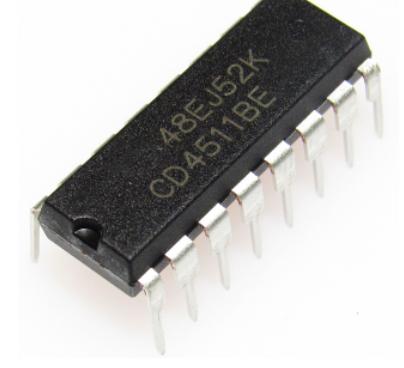

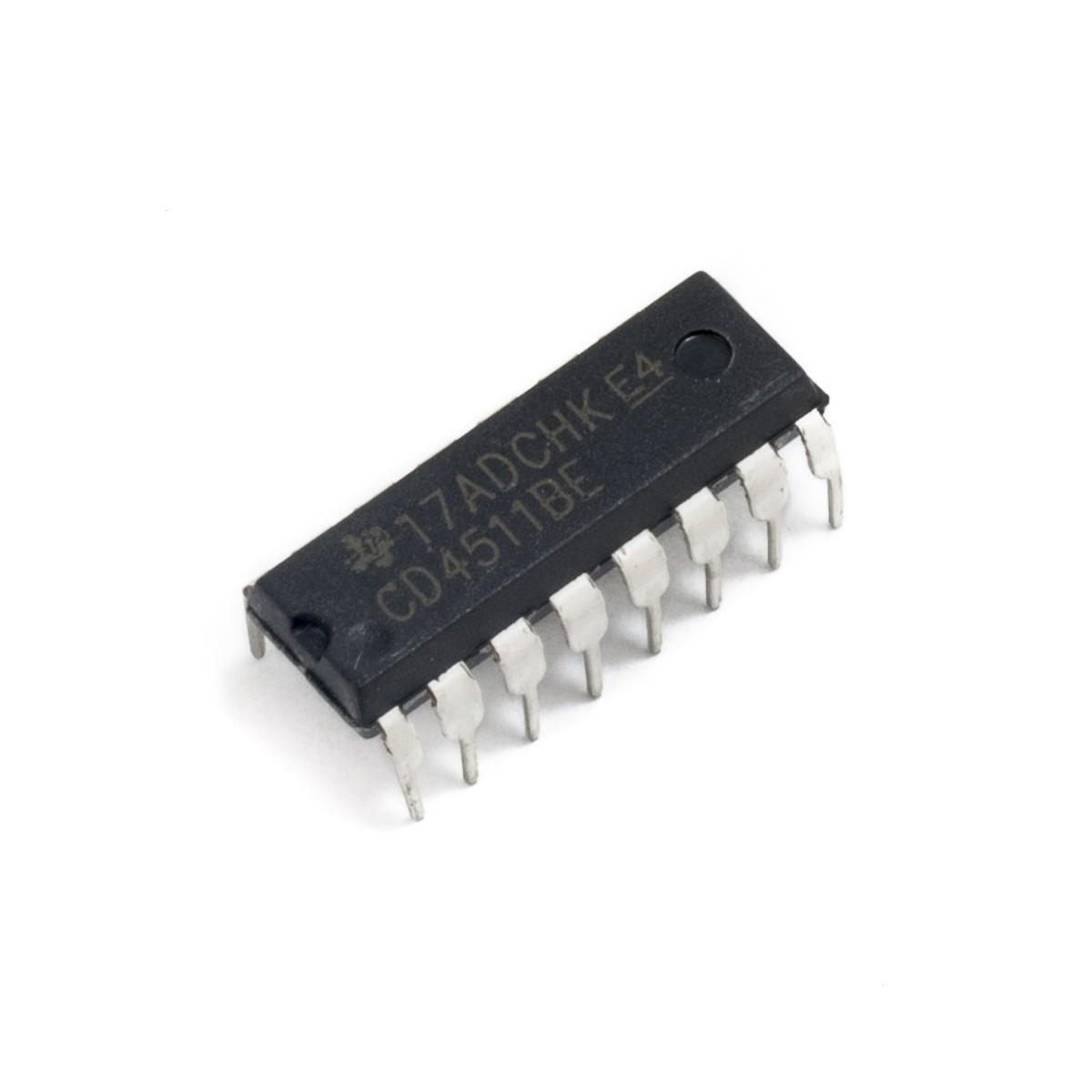

CD4511BD DIP16 HLF BCD TO 7-SEGMENT DECODER DRIVER

The CD4511BE is a BCD to 7-segment latch/decoder/driver IC designed to drive common cathode 7-segment LED displays. Housed in a 16-pin DIP (DIP-16) package, it converts a 4-bit Binary Coded Decimal (BCD) input into the corresponding 7-segment display output, making it ideal for digital counters, clocks, meters, and microcontroller projects.

Features

• BCD to 7-segment decoder/driver
• Drives common cathode LED displays
• Built-in data latch
• Lamp Test (LT) function
• Blanking Input (BI) function

Specifications

• Part Number: CD4511BE
• Function: BCD to 7-Segment Latch/Decoder/Driver
• Package: DIP-16
• Display Type: Common Cathode
• Operating Voltage: 3V–18V DC
