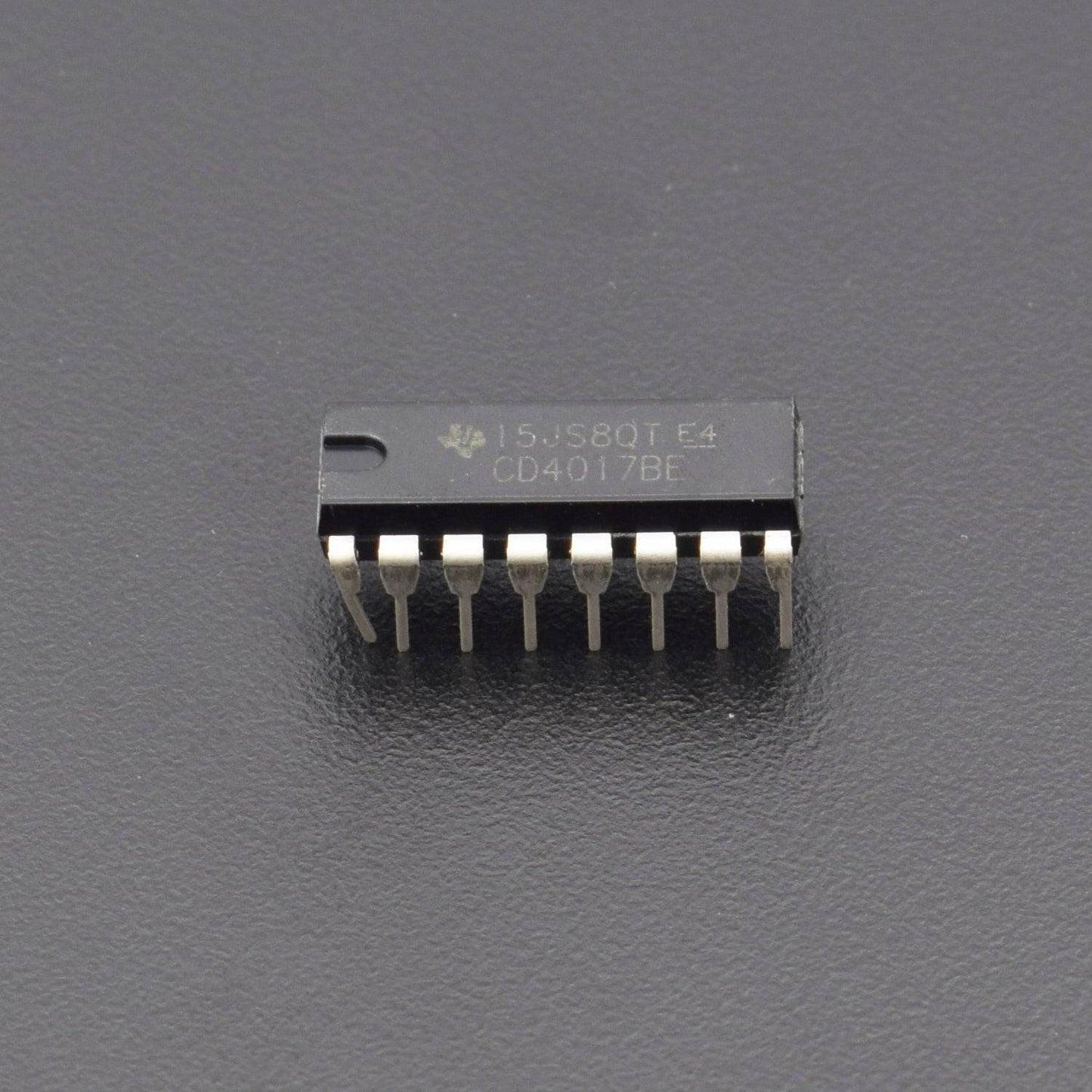

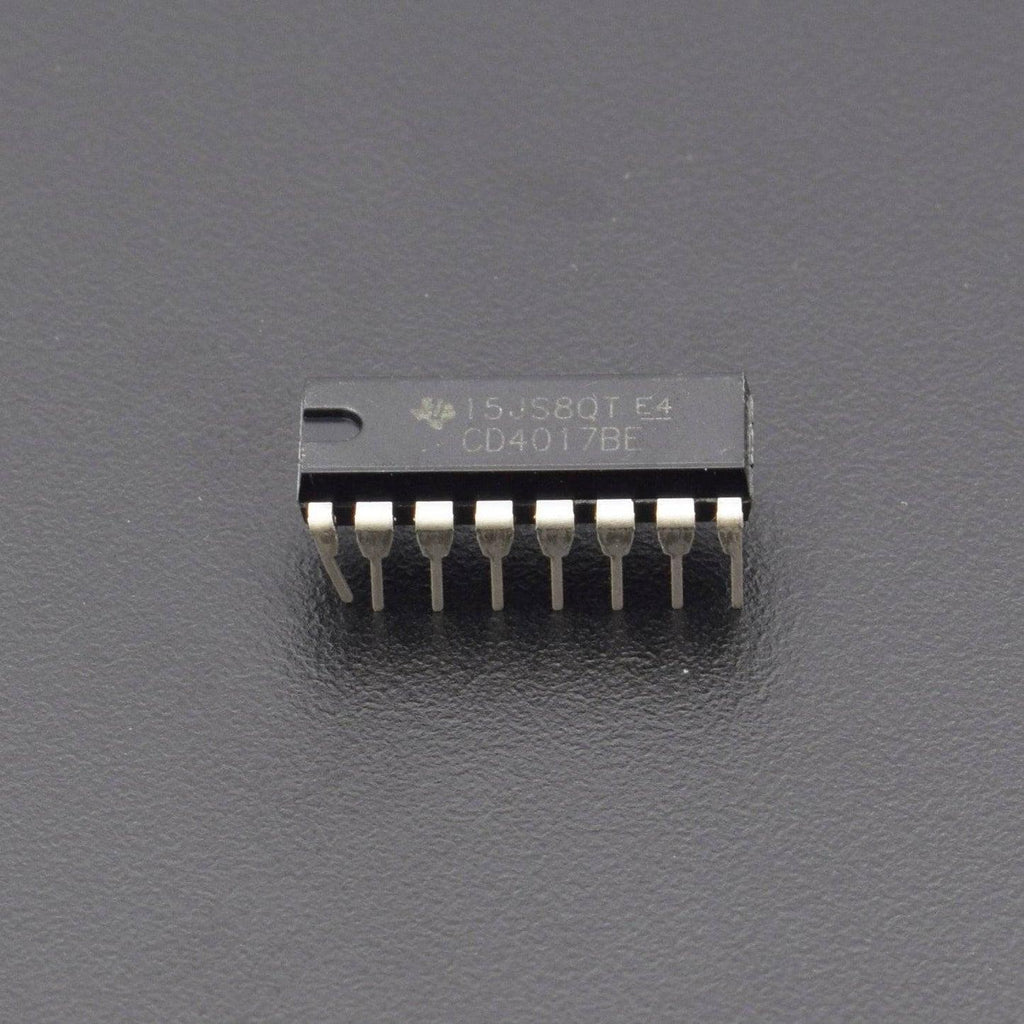

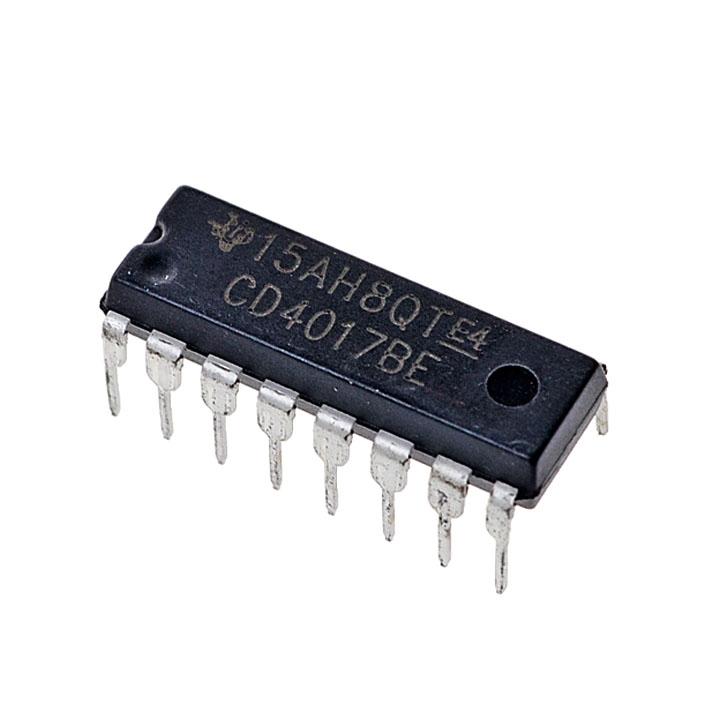

CD4017BE DIP16 TI Counter

The CD4017BE is a CMOS decade counter and decoded Johnson counter from Texas Instruments, packaged in a 16-pin DIP (DIP-16) through-hole package. It features 10 decoded outputs (Q0–Q9) that sequentially go HIGH with each clock pulse, making it ideal for LED chasers, event counters, frequency dividers, and timing applications.

Features:

• CMOS decade counter with 10 decoded outputs
• Operates from 3V to 18V supply voltage
• Sequential output on each clock pulse
• Clock enable and reset inputs
• Low power consumption
• High noise immunity

Specifications:

• Part Number: CD4017BE
• Manufacturer: Texas Instruments (TI)
• Package: DIP-16
• Logic Family: CMOS 4000 Series
• Supply Voltage: 3V to 18V DC

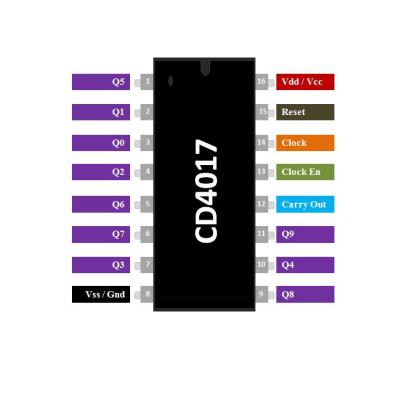

• Outputs: 10 Decoded Outputs (Q0–Q9)

Package Includes:

• 1 × CD4017BE DIP-16 Decade Counter IC (Texas Instruments)
