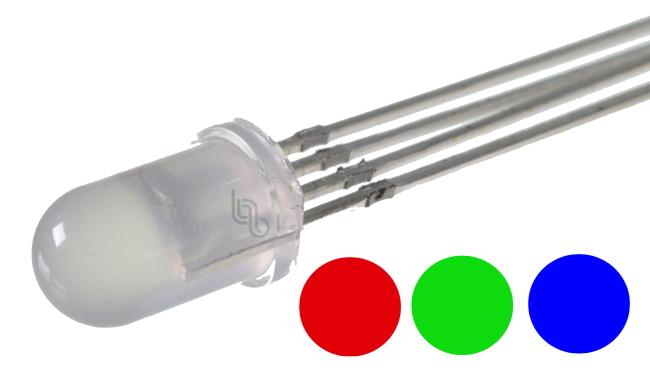

5MM RGB LED ROUND COMMON CATHODE DIFFUSED

The 5mm RGB LED Round Common Cathode Diffused is a four-pin through-hole LED capable of emitting Red, Green, and Blue light individually or in combination to produce a wide range of colors. Its diffused lens ensures smooth and uniform light distribution, making it ideal for decorative lighting, indicators, Arduino projects, and DIY electronics.

Features

• 5mm round diffused RGB LED
• Common cathode configuration
• Four through-hole pins
• Red, Green, and Blue LEDs in one package
• Wide viewing angle
• Low power consumption
• Long operational life

Specifications

• LED Type: RGB Diffused LED
• Lens Diameter: 5mm
• Configuration: Common Cathode
• Number of Pins: 4
• Mounting Type: Through-Hole
• Forward Voltage:
  • Red: 1.8V–2.2V
  • Green: 2.8V–3.4V
  • Blue: 2.8V–3.4V

Pin Configuration

When viewing the LED from the front with the longest lead on the second pin:

1. Red Anode (+)
2. Common Cathode (−) (Longest Lead)
3. Green Anode (+)
4. Blue Anode (+)

Note: Verify the pin configuration with the manufacturer's datasheet, as some RGB LEDs may have a different pin arrangement.

Package Includes

• 1 × 5mm RGB LED Round Common Cathode Diffused
