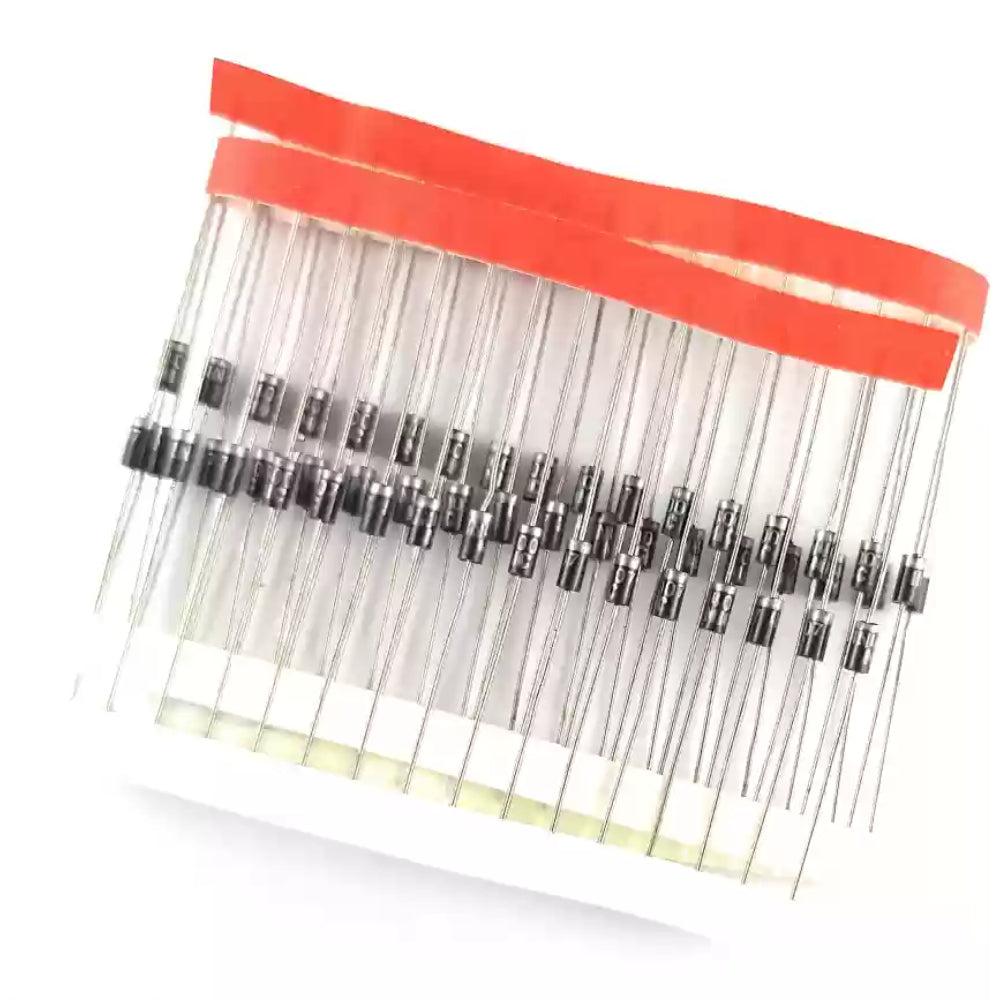

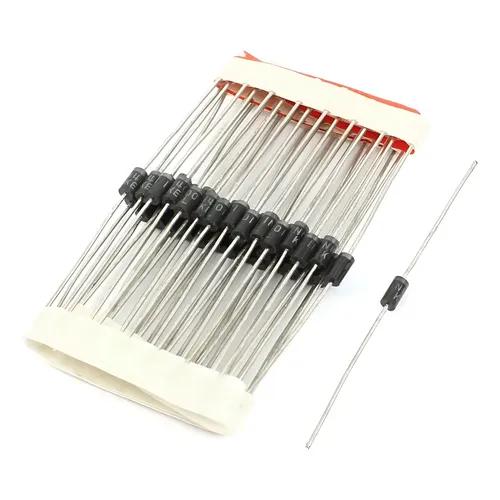

1N4007S HORNBY Diode 1000V 1A Rectifier

The 1N4007S HORNBY is a general-purpose silicon rectifier diode designed for efficient AC-to-DC conversion and reverse polarity protection. With a 1A average forward current and 1000V peak reverse voltage, it is ideal for power supplies, battery chargers, adapters, and a wide range of electronic circuits

Product Description

The 1N4007S HORNBY 1000V 1A Rectifier Diode is housed in a DO-41 through-hole package and offers reliable performance in general-purpose rectification applications. It features low forward voltage drop, high surge current capability, and excellent durability, making it suitable for hobby, educational, and industrial electronics projects.

Features

• General-purpose silicon rectifier diode
• High reverse voltage rating of 1000V
• 1A average forward current
• High surge current capability
• Low forward voltage drop
• Reliable and durable construction
• Standard DO-41 through-hole package
• Suitable for power supply and protection circuits

Specifications

• Part Number: 1N4007S
• Brand: HORNBY
• Diode Type: Rectifier Diode
• Package: DO-41
• Maximum Repetitive Reverse Voltage (VRRM): 1000V
• Average Forward Rectified Current (IF): 1A
• Peak Forward Surge Current (IFSM): 30A (Typical)
• Forward Voltage Drop (VF): 1.1V Max @ 1A
• Mounting Type: Through-Hole

Package Includes

• 1 × 1N4007S HORNBY 1000V 1A Rectifier Diode
